Franklin Electric

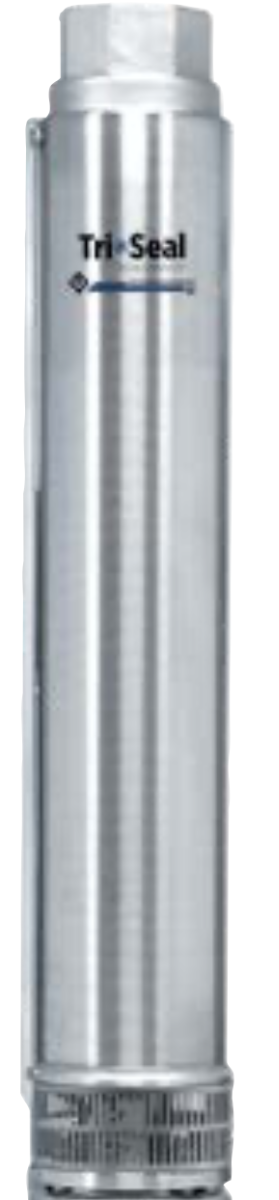

Franklin Electric - High Capacity Submersible Pump End ( ONLY ) - ( 2 HP Rated ) - 45 GPM

Franklin Electric - High Capacity Submersible Pump End ( ONLY ) - ( 2 HP Rated ) - 45 GPM

93664507

🔒 Sign in to view price & purchase

Free account. Your price shows instantly, and you can order online.

Log in to view price Create a free account

Request a quick quote

Prefer to talk? Call a pump expert

(866) 202-8388

Mon–Fri 9–5 ET

  • ✔ Genuine Franklin Electric product, authorized distributor
  • ✔ Fast shipping: most Franklin Electric items usually ship within 1-2 business days; call to confirm stock
  • ✔ Expert support: (866) 202-8388, Mon–Fri 9–5 ET
• Manufacturer: Franklin Electric
• Series: FPS / J-Class / Tri-Seal
• Model:45FH2S4-PECV
• SKU: 93664507
• Horsepower Rated: 2 HP ( No Motor - Pump End Only )
• Number of Stages: 7 - Stages
• Rated GPM: 45 GPM
• Total Dynamic Head: 160 TDH
• Length: 19.8 Inches
• Weight: 12 Lbs
• Discharge: 2" NPT
• Check Value: Yes

The Franklin High Capacity 4" submersible pumps are designed for commercial, irrigation, and home use and are available in multiple performance ranges. Engineering and construction features both combine to reduce the efficiency losses caused by leakage within the pump or from pumping sand. Built for quality. The floating eye and hub seals for improved performance and efficiency. The high flow impellers and stages are glass-filled Noryl for maximum efficiency.
• Stainless steel discharge head and motor bracket
• High flow impellers and stages are glass-filled modified PPO for maximum efficiency • Ceramic shaft sleeve and rubber discharge bearing eliminates sand wear
• Intermediate bearing for increased shaft stability
• Floating eye and hub seals for improved performance and efficiency
• Stainless steel hex pump shaft, shell, and shaft coupling
• High capacity up thrust assembly for protection during start-up and operation (45, 60, and 90 gpm models) • Recommended to be powered by Franklin’s corrosion-resistant 4" submersible motor (Not Included)
• Discharge: 2" NPT
• Check Value: Yes

manual.pdf

Franklin Electric Brochure Tri-seal.pdf

BrandFranklin Electric
SKU / Part #93664507
CategoryWater Pumps & Equipment
Ship weight13.0 lb

Full specifications are in the Overview tab.

Need the spec sheet, curve or manual? Call (866) 202-8388 or use the quote form and we'll email it.
