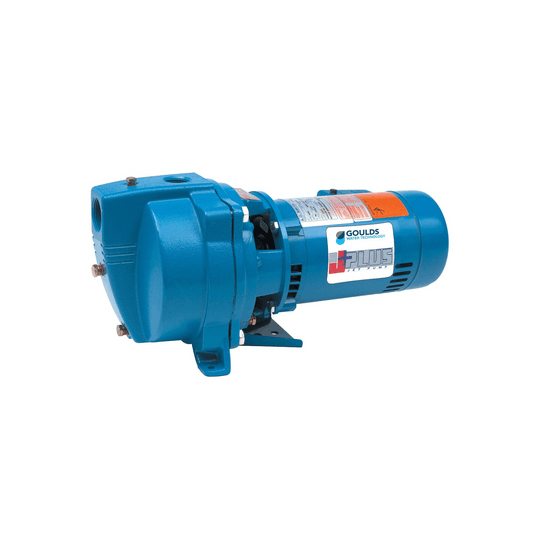

Goulds J10S Shallow Well Jet Pump - 115/230V - 1 HP
Goulds J10S Shallow Well Jet Pump - 115/230V - 1 HP
SKU:J10S
Couldn't load pickup availability
The Goulds J10S is a 1 HP JS+ series shallow well jet pump for homes, cottages and booster service. It comes with the built-in shallow well jet (nozzle and venturi), motor, 30-50 psi pressure switch and tubing, so no separate shallow well adapter is needed.
Usually ships within 1-2 business days. Ship times can vary with supplier stock; call (866) 202-8388 to confirm before you order.
Specifications
| Brand | Goulds (Xylem) |
|---|---|
| Model | J10S |
| Series | JS+ shallow well jet pump |
| Horsepower | 1 HP |
| Voltage | 115 / 230 V, single phase, 60 Hz |
| Speed | 3450 RPM |
| Suction / discharge | 1-1/4" NPT / 1" NPT |
| Pressure switch | AS4, preset 30-50 psi (included) |
| Max water temperature | 140°F |
| Listing | UL778 |
Fits / Replaces
- Shallow wells and booster service for homes and cottages
- Replaces an existing Goulds J10S or J-series shallow well jet pump of the same HP
- Rebuild kit for this pump: Goulds J10S rebuild kit (J10S-RBK)
Install & Use Notes
Prime the pump case with water before the first start. After the first prime, the pump can re-prime itself when air gets into the line. The back pull-out design lets you service the pump without disturbing the piping. Set the motor for the voltage you are supplying (115 V or 230 V).
Frequently Asked Questions
Is the J10S for shallow or deep wells?
Shallow wells. The shallow well jet is built into the casing.
Does it come with a pressure switch?
Yes, an AS4 switch preset to 30-50 psi.
What size are the pipe connections?
1-1/4" NPT suction and 1" NPT discharge.
Can I rebuild it later?
Yes. The J10S-RBK rebuild kit has the seal ring, mechanical seal, diaphragm, impeller and diffuser.
Full Product Details
• Manufacturer: Goulds
• Brand: Xylem
• Series: JS+ Series
• Product Type: Shallow Well Jet Pump
• MPN: J10S
• Horsepower: 1 HP
• Dual Voltage: 115 / 230 V
• Pressure Switch ( Included ): 30-50 Preset
• Inlet / Outlet Pipe Connections: 1¼" NPT / 1" NPT
Standard Features of the Goulds J10S - JS+ Series - Shallow Well Jet Pumps
The Goulds JS+ Series shallow well jet pumps are specifically designed for the following uses: Homes, Cottages or Booster service
Included with pump is the integral shallow well jet (nozzle and venturi), motor, pressure switch and tubing
Compact: Design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter
Serviceable:
• Back pullout design allows disassembly of pump for service without disturbing piping
• Two compartment motor for easy access to motor wiring and replaceable components
• Nozzle clean out plug in pump case
• Corrosion resistant, engineered plastic tubing and fittings are easily removed for cleaning
• Premium O-ring design fittings need only be hand tight to seal
Impeller:
• F.D.A. compliant, glass filled Noryl®. Corrosion and abrasion resistant
Diffuser (Guidevane):
• Bolt down diffuser provides positive alignment with impeller
• Diffuser also has stainless wear ring for extended performance in abrasive conditions.
• F.D.A. compliant, injection molded, food grade, glass filled Lexan® for durability and abrasion resistance
Tubing and Fittings:
• F.D.A. compliant engineered plastic is corrosion and U.V. resistant
Motor Powered for Continuous Operation:
• Pump ratings are within the motor manufacturer’s recommended working limits
• Can be operated continuously without damage
Corrosion Resistant:
• Electro-coated paint process is applied inside and out, then baked on
Protected Mechanical Seal:
• Special diaphragm design retains water in the casing at all times to ensure the mechanical seal can never run dry
Excellent Air Handling Ability:
• After initial priming the pump has the ability to re-prime itself even when air gets into the system.
• Pumping resumes once the water level rises above the foot valve
Standard JS+ Series Jet Pump SpecificationsPump
• Pipe connections: 1¼” NPT suction and 1” NPT discharge
• Pressure switch: AS4 preset (30-50 PSI)
• Maximum temperature: 140ºF
Motor:
• NEMA standard
• 60 Hz
• 115/230 V capacitor start
• Single phase
• 3450 RPM
• Built-in overload with automatic reset
• Stainless steel shaft
• Rotation: clockwise when viewed from motor end
• UL778 listed
