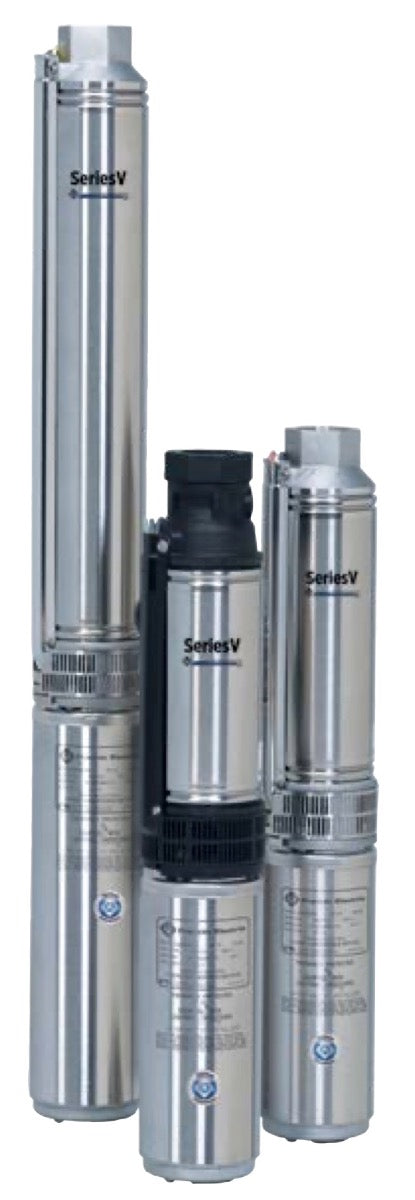

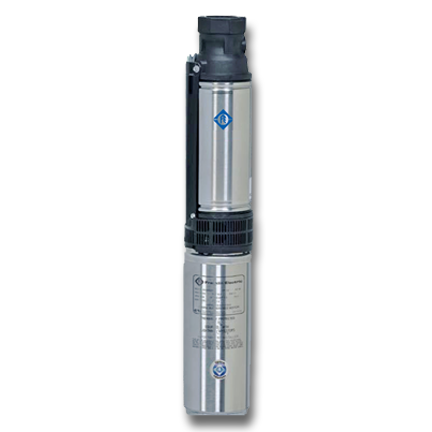

Franklin Electric 15JV1P4-2W230 Submersible Pump - 15 GPM - 1 HP - 230 Volts ( 2 Wires + Ground )

• Manufacturer: Franklin Electric
• Brand: J-Class
• Model: Series V
• Product Type: 4" Submersible Pump - Complete Pump & Motor
• Model Number: 15JV1P4-2W230
• Order Number: 95201520
• Motor Horsepower: 1 HP
• Motor Voltage: 230 Volts
• Motor Phase / Hz: Single Phase / 60 Hz
• Motor Wire Type: 2-Wire Motor
• Motor Lead: 3-Wires ( L1 / L2 / Ground )
• Pump GPM Rated: 15 GPM
• Pump Stages: 8 Stages
• Pump TDH Rated: 250 TDH
• Pump Discharge Connection: 1-1/4" NPT
• Pump Discharge Head & Wire Bracket: Thermoplastic
• Maximum Diameter: 3.90" ( Including Wire Cable Guard )
• Total Length: 27.96"
• Total Weight: 31 Lbs

Franklin Electric 4" Submersible Pump J-Class Series V 15JV1P4-2W230 Product Specifications
• Product Type: 4" Submersible Pump - Complete Pump & Motor
• Manufacturer: Franklin Electric
• Brand: J-Class
• Model: Series V
• Model Number: 15JV1P4-2W230

Franklin Electric Motor Specifications
• Motor Horsepower: 1 HP
• Motor Model: 2445089003GS
• Motor Voltage: 230 Volts
• Motor Phase / Hz: Single Phase / 60 Hz
• Motor Wire Type: 2-Wire Motor
• Motor Lead: 2-Wires ( L1 / L2 / Ground )*
* Please Note: Motor will not require a Control Box to operate and runFranklin Electric Pump-End Specifications

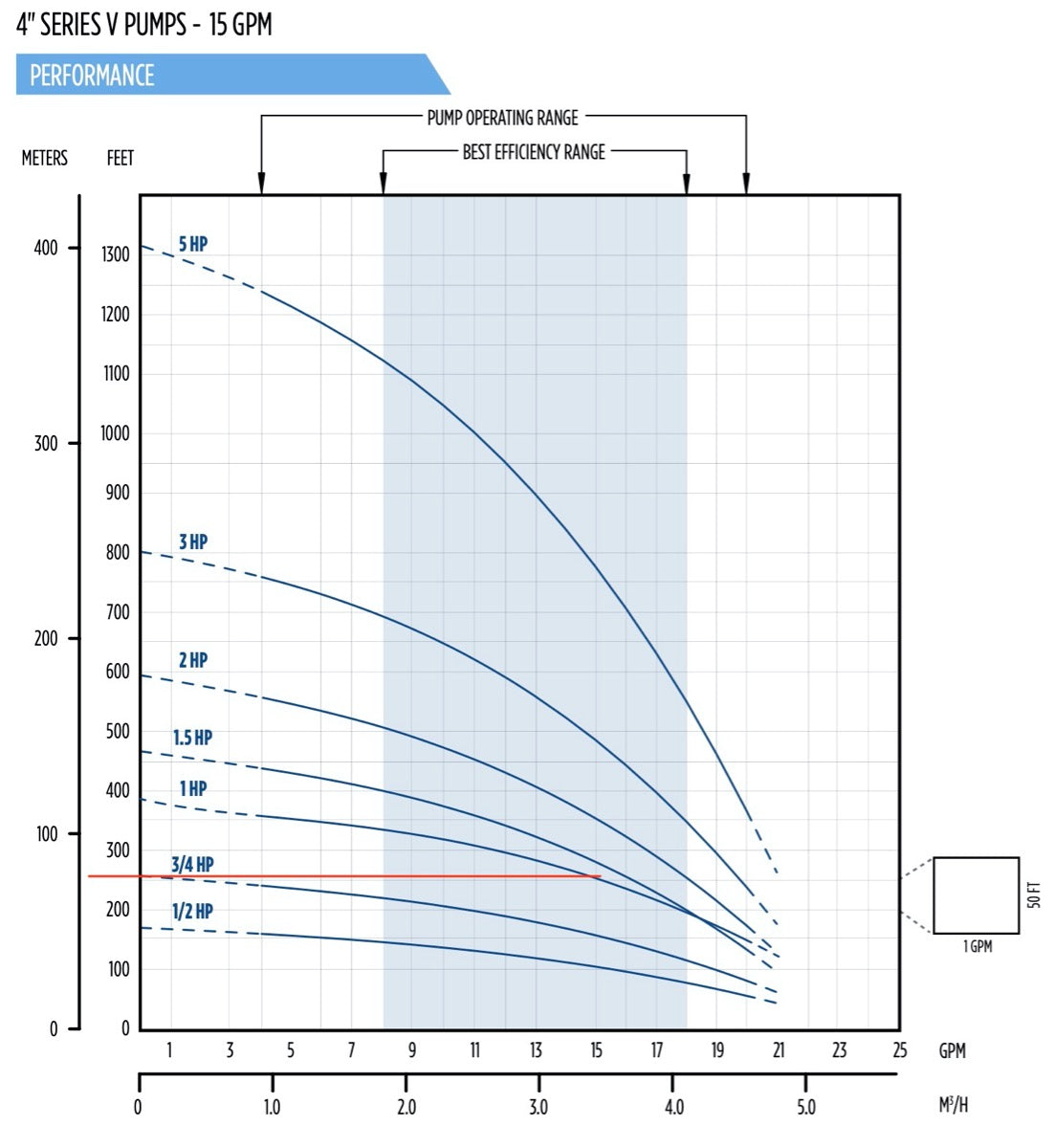

• Pump GPM Rated: 15 GPM
• Pump Stages: 8 Stages
• Pump TDH Rated: 250 TDH*
* Please Note: TDH (Total Dynamic Head) is calculated based on: Operated Pressure + Depth to Water in Well + Pipe Friction + Elevation Changes )

• Pump Discharge Connection: 1-1/4" NPT
• Pump Discharge Head & Wire Bracket: Thermoplastic

Franklin Electric Submersible Pump Dimensions
• Maximum Diameter: 3.90" ( Including Wire Cable Guard )
• Total Length: 27.96"
• Total Weight: 31 Lbs

Standard Features of Series V Submersible Pumps
• The Franklin Electric J-Class Series V is a complete 4" submersible pump that features unique hydraulics that improve efficiency and minimize wear even when pumping abrasives
• Discharge head and motor bracket produced with industry proven, engineered materials.
• Large wrench flat area on the discharge head for ease of installation
• Dry run designed top bearing positively supports the 300 series stainless steel 7/16" hex shaft
• Removable internal check valve
• Powered by Franklin Electric corrosion resistant super stainless 4" submersible motors with lightning protection
• Maximum water temperature with proper flow is 120 °F
