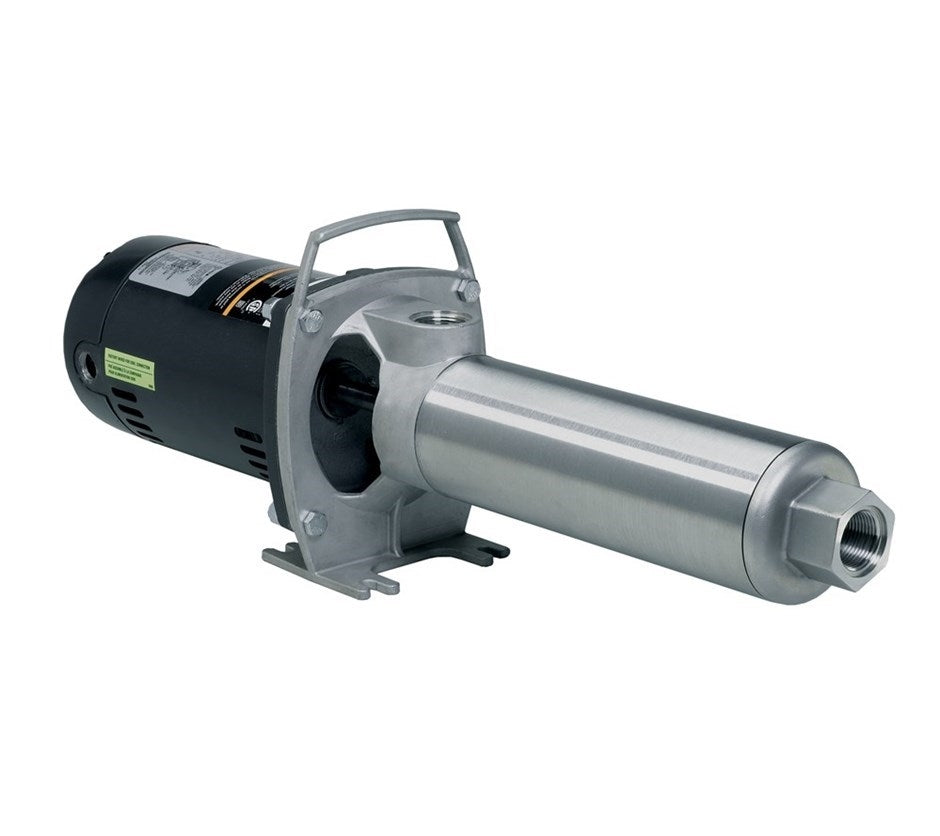

Franklin Electric BT4 Series SS Booster Pump - 7 GPM - 1/2 HP - 7FBT05S4

• Manufacturer: Franklin Electric
• Series: BT4 Series
• Model: 7FBT05S4
• Material: Stainless Steel
• Horsepower: 1/2 HP
• Voltage: 115/230 V
• Pump GPM: 7 GPM
• Pump TDH Rated: 250 TDH
• Pump PSI Rated: 108 PSI
• Discharge / Suction Size: 1" NPT
Franklin Electric BT4 Series - Multi-Stage Booster PumpSpecific Details for the 7FBT05S4
• Material: Stainless Steel
• Horsepower: 1/2 HP
• Voltage: 115/230 V
• Pump GPM: 7 GPM
• Pump TDH Rated: 250 TDH
• Pump PSI Rated: 108 PSI
• Discharge / Suction Size: 1" NPT

The BT4 horizontal booster pump is a low to medium capacity, high pressure, multi-stage unit. The BT4 can function as a multi-purpose high pressure pump, boosting water pressure from either city mains or private water systems. It is also ideal for applications that require more pressure than flow.

Applications for Franklin Electric BT4 Series Booster Pumps
• Boosting water pressure from either city mains or private water systems
• Pressure washing buildings and floors
• Poultry houses
• Spray cooling equipment
• Lawn and crop irrigation
• Evaporative cooling system misters
• Water circulation
• General purpose pumping
• Reverse osmosis - stainless steel BT4
• Filtration - stainless steel BT4

Cast Iron Features:
• Designed for boosting water pressure from a variety of sources including municipal and private water systems.
• Stainless steel discharge head on all models.
• Cast iron motor bracket with a rugged support foot for horizontal or vertical mounting, and a handle for portability of the unit.
• 1-inch suction and 1-inch discharge are the same across the entire line, simplifying installation and maintenance.
• The booster pump is built by Franklin Electric’s Patented (U.S.) Patent 7,290,984 Tri-Seal floating stage system, for maximum efficiency, longevity, and performance.
• Assembled with the highest quality materials of construction, such as Celcon(*) for impellers, Noryl(*) for the diffusers, and 300 series stainless steel for the hub, eye seals, shaft and shell.
• Easily serviced through a back pull-out design, which leaves all plumbing and the pump undisturbed in their original location.
• Industry proven square flange motors.

Stainless Steel Features:
• Stainless steel models industrial applications:
• Viton mechanical seal
• 1/3 through 3 hp high service factor motors
• Stainless steel motor bracket with a rugged support foot for horizontal or vertical mounting, and a handle for portability of the unit.
