Franklin Electric 25JV15S4-3W230 Submersible Pump - 25 GPM - 1.5 HP - 230 Volts ( 3 Wires + Ground ) - SS
Franklin Electric 25JV15S4-3W230 Submersible Pump - 25 GPM - 1.5 HP - 230 Volts ( 3 Wires + Ground ) - SS
SKU:95222550
🔒 Sign in to view price & purchase
Free account. Your price shows instantly, and you can order online.
Log in to view price Create a free accountRequest a quick quote
- ✔ Genuine Franklin Electric product, authorized distributor
- ✔ Fast shipping: most Franklin Electric items usually ship within 1-2 business days; call to confirm stock
- ✔ Expert support: (866) 202-8388, Mon–Fri 9–5 ET

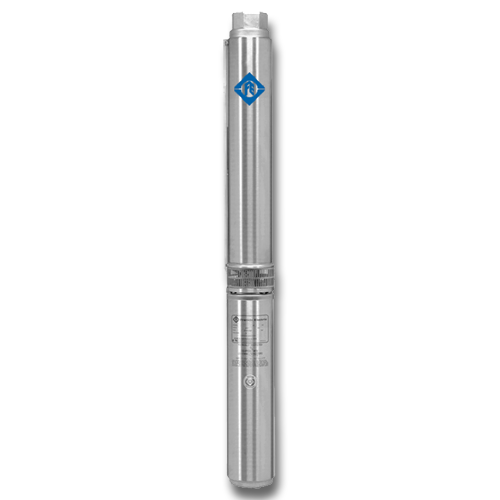

The Franklin Electric 25JV15S4-3W230 is a complete 4" J-Class Series V submersible pump and motor: 1.5 HP, 230 V single phase, 3-wire, rated 25 GPM at 200 ft TDH. It needs a control box.
Not sure it fits? Call (866) 202-8388 and we will confirm the right part.
Specifications
| Brand | Franklin Electric (J-Class Series V) |
|---|---|
| Model | 25JV15S4-3W230 |
| Order number | 95222550 |
| Type | 4" submersible pump and motor |
| Horsepower | 1.5 HP |
| Voltage / phase | 230 V, single phase, 60 Hz |
| Motor wiring | 3-wire (4 leads incl. ground); control box required |
| Rated flow | 25 GPM |
| Stages | 8 |
| Rated head | 200 ft TDH |
| Discharge | 1-1/4" NPT |
| Max diameter | 3.90" incl. cable guard |
| Length / weight | 31.12" / 38 lbs |
Fits / Replaces
- 4" and larger residential wells
- Replaces a 25 GPM 1.5 HP 230 V 3-wire submersible
- Needs a matching control box: submersible control boxes
Install & Use Notes
This 3-wire pump needs a control box matched to the motor HP and voltage. TDH = pressure (psi x 2.31) + depth to water + pipe friction + elevation, so check your numbers or call us before you order. Use a waterproof splice kit and a torque arrestor.
Frequently Asked Questions
Is it 2-wire or 3-wire?
3-wire. A control box is required.
Is the motor included?
Yes, it is a complete pump and motor.
What flow is it rated for?
25 GPM, rated to 200 ft TDH.
What size discharge?
1-1/4" NPT.
Full Product Details
How about a TEN year warranty!
Same quality pump - half the price...
Supreme Water Sales SWS25G15S4-3W230
Click HERE to view & compare
• Manufacturer: Franklin Electric
• Brand: J-Class
• Model: Series V
• Product Type: 4" Submersible Pump - Complete Pump & Motor
• Model Number: 25JV15S4-3W230
• Order Number: 95222550
• Motor Horsepower: 1.5 HP
• Motor Voltage: 230 Volts
• Motor Phase / Hz: Single Phase / 60 Hz
• Motor Wire Type: 3-Wire Motor
• Motor Lead: 4-Wires ( L1 / L2 / Neutral / Ground )
• Pump GPM Rated: 25 GPM
• Pump Stages: 8 Stages
• Pump TDH Rated: 200 TDH
• Pump Discharge Connection: 1-1/4" NPT
• Pump Discharge Head & Wire Bracket: 300 Stainless Steel
• Maximum Diameter: 3.90" ( Including Wire Cable Guard )
• Total Length: 31.12"
• Total Weight: 38 Lbs
Franklin Electric 4" Submersible Pump J-Class Series V 25JV15S4-3W230Product Specifications
• Product Type: 4" Submersible Pump - Complete Pump & Motor
• Manufacturer: Franklin Electric
• Brand: J-Class
• Model: Series V
• Model Number: 25JV15S4-3W230
Franklin Electric Motor Specifications
• Motor Horsepower: 1-1/2 HP
• Motor Voltage: 230 Volts
• Motor Phase / Hz: Single Phase / 60 Hz
• Motor Wire Type: 3-Wire Motor
• Motor Lead: 4-Wires ( L1 / L2 / Neutral / Ground )*
* Please Note: Motor will require a Control Box to operate and runFranklin Electric Pump-End Specifications
• Pump GPM Rated: 25 GPM
• Pump Stages: 8 Stages
• Pump TDH Rated: 200 TDH*
* Please Note: TDH (Total Dynamic Head) is calculated based on: Operated Pressure + Depth to Water in Well + Pipe Friction + Elevation Changes )
• Pump Discharge Connection: 1-1/4" NPT
• Pump Discharge Head & Wire Bracket: 300 Stainless Steel
Franklin Electric Submersible Pump Dimensions
• Maximum Diameter: 3.90" ( Including Wire Cable Guard )
• Total Length: 31.12"
• Total Weight: 38 Lbs
Standard Features of Series V Submersible Pumps
• The Franklin Electric J-Class Series V is a complete 4" submersible pump that features unique hydraulics that improve efficiency and minimize wear even when pumping abrasives
• Discharge head and motor bracket produced with industry proven, engineered materials.
• Large wrench flat area on the discharge head for ease of installation
• Dry run designed top bearing positively supports the 300 series stainless steel 7/16" hex shaft
• Removable internal check valve
• Powered by Franklin Electric corrosion resistant super stainless 4" submersible motors with lightning protection
• Maximum water temperature with proper flow is 120 °F
