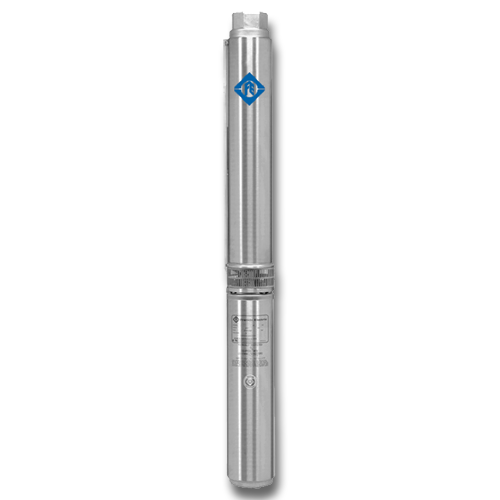

  • Franklin Electric 10JV1S4-3W230 Submersible Pump - Stainless Steel - 10 GPM - 1 HP - 230 Volts ( 3 Wires + Ground ) - 95221045
  • Franklin Electric 10JV1S4-3W230 Submersible Pump - Stainless Steel - 10 GPM - 1 HP - 230 Volts ( 3 Wires + Ground ) - 95221045 - view 2
1 2

Franklin Electric

Franklin Electric 10JV1S4-3W230 Submersible Pump - Stainless Steel - 10 GPM - 1 HP - 230 Volts ( 3 Wires + Ground ) - 95221045

Franklin Electric 10JV1S4-3W230 Submersible Pump - Stainless Steel - 10 GPM - 1 HP - 230 Volts ( 3 Wires + Ground ) - 95221045

95221045

🔒 Sign in to view price & purchase

Free account. Your price shows instantly, and you can order online.

Log in to view price Create a free account

Request a quick quote

Prefer to talk? Call a pump expert

(866) 202-8388

Mon–Fri 9–5 ET

  • ✔ Genuine Franklin Electric product, authorized distributor
  • ✔ Fast shipping: most Franklin Electric items usually ship within 1-2 business days; call to confirm stock
  • ✔ Expert support: (866) 202-8388, Mon–Fri 9–5 ET

The Franklin Electric 10JV1S4-3W230 is a complete 4" J-Class Series V submersible pump and motor: 1 HP, 230 V single phase, 3-wire, rated 10 GPM at 290 ft TDH. It needs a control box.

Not sure it fits? Call (866) 202-8388 and we will confirm the right part.

Specifications

Brand Franklin Electric (J-Class Series V)
Model 10JV1S4-3W230
Order number 95221045
Type 4" submersible pump and motor
Horsepower 1 HP
Voltage / phase 230 V, single phase, 60 Hz
Motor wiring 3-wire (4 leads incl. ground); control box required
Rated flow 10 GPM
Stages 11
Rated head 290 ft TDH
Discharge 1-1/4" NPT
Max diameter 3.90" incl. cable guard

Fits / Replaces

  • 4" and larger residential wells
  • Replaces a 10 GPM 1 HP 230 V 3-wire submersible
  • Needs a matching control box: submersible control boxes

Install & Use Notes

This 3-wire pump needs a control box matched to the motor HP and voltage. TDH = pressure (psi x 2.31) + depth to water + pipe friction + elevation, so check your numbers or call us before you order. Use a waterproof splice kit and a torque arrestor.

Frequently Asked Questions

Is it 2-wire or 3-wire?
3-wire. A control box is required.

Is the motor included?
Yes, it is a complete pump and motor.

What flow is it rated for?
10 GPM, rated to 290 ft TDH.

What size discharge?
1-1/4" NPT.

Full Product Details

• Manufacturer: Franklin Electric
• Product Type: 4" Submersible Pump - Complete Pump & Motor
• Model Number: 10JV1S4-3W230
• Order Number: 95221045
• Motor Horsepower: 1 HP
• Motor Voltage: 230 Volts
• Motor Phase / Hz: Single Phase / 60 Hz
• Motor Wire Type: 3-Wire Motor
• Motor Lead: 4-Wires ( L1 / L2 / Neutral / Ground )
• Pump GPM Rated: 10 GPM
• Pump Stages: 11 Stages
• Pump TDH Rated: 290 TDH
• Pump Discharge Connection: 1-1/4" NPT
• Pump Discharge Head & Wire Bracket: 300 Stainless Steel
• Maximum Diameter: 3.90" ( Including Wire Cable Guard )


Franklin Electric 4" Submersible Pump J-Class Series V 10JV1S4-3W230  Product Specifications
• Product Type: 4" Submersible Pump - Complete Pump & Motor
• Manufacturer: Franklin Electric
• Brand: J-Class
• Model: Series V
• Model Number: 10JV1S4-3W230

Franklin Electric Motor Specifications
• Motor Horsepower: 1 HP
• Motor Voltage: 230 Volts
• Motor Model Number: 2145089003GS
• Motor Phase / Hz: Single Phase / 60 Hz
• Motor Wire Type: 3-Wire Motor
• Motor Lead: 4-Wires ( L1 / L2 / Neutral / Ground )*
* Please Note: Motor will require a Control Box to operate and run

Franklin Electric Pump-End Specifications
• Pump GPM Rated: 10 GPM
• Pump Stages: 11 Stages
• Pump TDH Rated: 290 TDH*
* Please Note: TDH (Total Dynamic Head) is calculated based on: Operated Pressure + Depth to Water in Well + Pipe Friction + Elevation Changes )
• Pump Discharge Connection: 1-1/4" NPT
• Pump Discharge Head & Wire Bracket: 300 Stainless Steel

Franklin Electric Submersible Pump Dimensions
• Maximum Diameter: 3.90" ( Including Wire Cable Guard )
• Total Length: 28.58"
• Total Weight: 35 Lbs

Standard Features of Series V Submersible Pumps
• The Franklin Electric J-Class Series V is a complete 4" submersible pump that features unique hydraulics that improve efficiency and minimize wear even when pumping abrasives
• Discharge head and motor bracket produced with industry proven, engineered materials.
• Large wrench flat area on the discharge head for ease of installation
• Dry run designed top bearing positively supports the 300 series stainless steel 7/16" hex shaft
• Removable internal check valve
• Powered by Franklin Electric corrosion resistant super stainless 4" submersible motors with lightning protection
• Maximum water temperature with proper flow is 120 °F
