Franklin Electric - High Capacity Submersible Pump End ( ONLY ) - ( 3 HP Rated ) - 60 GPM

Franklin Electric - High Capacity Submersible Pump End ( ONLY ) - ( 3 HP Rated ) - 60 GPM

93666010

🔒 Sign in to view price & purchase

Free account. Your price shows instantly, and you can order online.

Log in to view price Create a free account

Request a quick quote

Prefer to talk? Call a pump expert

(866) 202-8388

Mon–Fri 9–5 ET

  • ✔ Genuine Franklin Electric product, authorized distributor
  • ✔ Fast shipping: most Franklin Electric items usually ship within 1-2 business days; call to confirm stock
  • ✔ Expert support: (866) 202-8388, Mon–Fri 9–5 ET

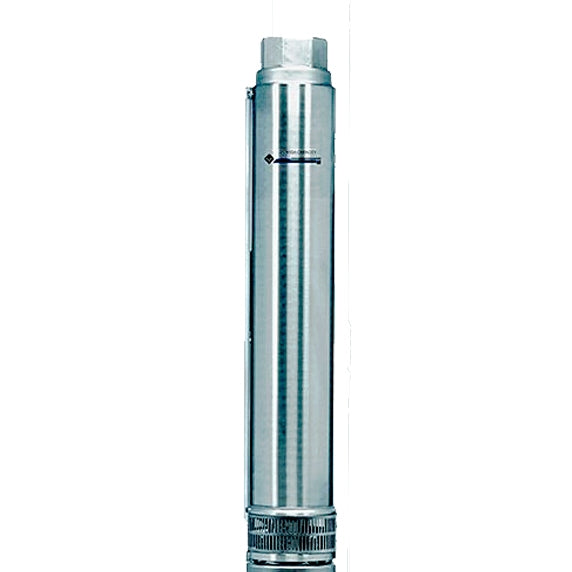

The Franklin Electric 93666010 (60FH3S4) is a 4" high capacity submersible pump end only, rated for a 3 HP motor, 60 GPM at 150 ft TDH. The motor is not included.

Not sure it fits? Call (866) 202-8388 and we will confirm the right part.

Specifications

Brand Franklin Electric
Model 60FH3S4
Order number 93666010
Type 4" submersible pump end only (no motor)
Motor rating 3 HP
Stages 8
Rated flow 60 GPM
Rated head 150 ft TDH
Discharge 2" NPT, internal check valve
Length 25.5"
Construction Stainless discharge head, motor bracket, shell and hex shaft; glass-filled PPO impellers

Fits / Replaces

  • Commercial, irrigation and home wells, 4" and larger
  • Replaces a worn 60FH3S4 pump end while keeping a good motor
  • Pairs with a Franklin 4" submersible motor of the matching HP (not included): submersible motors

Install & Use Notes

Check that your existing motor is the right HP and in good condition before you swap the pump end. Use a matching Franklin 4" motor. Check splices and wire with a megohmmeter while the pump is out of the well.

Frequently Asked Questions

Does this include a motor?
No. It is the pump end only.

What motor do I need?
A 3 HP 4" submersible motor, ideally Franklin Electric.

How much water does it pump?
It is rated 60 GPM at 150 ft TDH.

How many stages?
8.

Full Product Details

• Manufacturer: Franklin Electric
• Model:60FH3S4
• SKU: 93666010

• Horsepower Rated: 3 HP ( No Motor - Pump End Only )
• Number of Stages: 8 - Stages
• Rated GPM: 60 GPM
• Total Dynamic Head: 150 TDH
• Internal Check Valve: Yes

• Length: 25.50 Inches
• Weight: 17 Lbs
Franklin Electric 60FH3S4-PE High Capacity Submersible Pump End ( ONLY ) - ( 3 HP Rated ) - 60 GPM

The J-Class High Capacity 4" submersible pumps are designed for commercial, irrigation, and home use and are available in multiple performance ranges. Engineering and construction features both combine to reduce the efficiency losses caused by leakage within the pump or from pumping sand. Built for quality. The floating eye and hub seals for improved performance and efficiency. The high flow impellers and stages are glass-filled Noryl for maximum efficiency.

• Stainless steel discharge head and motor bracket
• High flow impellers and stages are glass-filled modified PPO for maximum efficiency
• Ceramic shaft sleeve and rubber discharge bearing eliminates sand wear
• Intermediate bearing for increased shaft stability
• Floating eye and hub seals for improved performance and efficiency
• Stainless steel hex pump shaft, shell, and shaft coupling
• High capacity up thrust assembly for protection during start-up and operation (45, 60, and 90 gpm models)
• Recommended to be powered by Franklin’s corrosion-resistant 4" submersible motor (Not Included)
• 2 -inch NPT discharge connection
