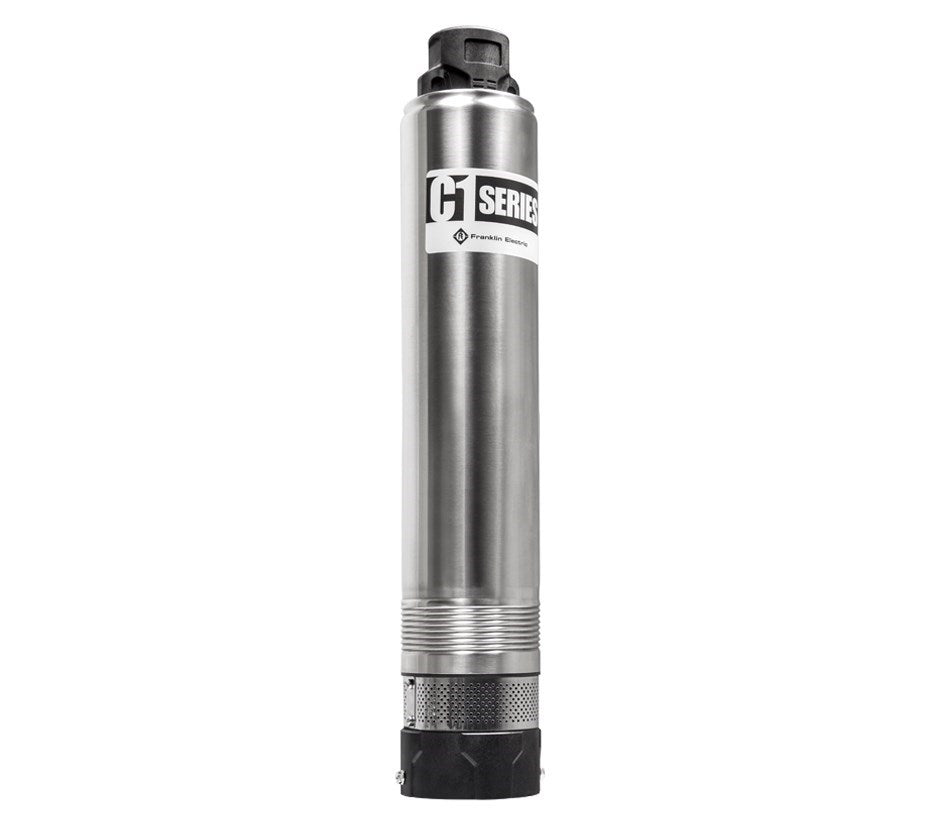

Franklin Electric 90302020 - Bottom Suction - Cistern - Effluent Submersible Pump - 1/2 HP - 230 Volt - 20 GPM

• Manufacturer: Franklin Electric
• Series: C1 Series - 4" Bottom Suction
• Model Number: 20XC1-05P4-2W230
• MPN: 90302020
• Horsepower: 1/2 HP
• Voltage: 230 Volts
• Motor Wires: 2-Wires ( + Ground Wire )
• Requires Control Box: No
• Phase / Hz: Single Phase / 60 Hz
• Cord Length: 10 Feet
• Discharge outlet: 1.5"
• GPM Rated: 20 GPM
• TDH (Total Dynamic Head Rated): 100 TDH
• PSI Rated: 43 PSI

Franklin Electric C1 Series 4" Cistern Submersible Pumps
Designed for use in gray water/filtered effluent service applications, the C1 Series cistern pump provides high performance and long life in less than ideal water conditions. The C1 Series pump is able to pass solids up to 1/8-inch without having a negative effect on the internal hydraulic components.

Typical Applications of the C1 Series Pump
• Gray water pumping
• Cistern Tanks
• Aerator Tanks
• Well Pump
• Filtered effluent service water pumping
• Water reclamation projects such as pumping from rain catchment basins
• Aeration and other foundation or pond applications
• Agriculture and livestock water pumping

Standard Features - Franklin Electric C1 Series Pumps
• Supplied with a removable 5" base for secure and reliable mounting
• 4" Bottom suction design
• Robust thermoplastic discharge head design resists breakage during installation and operation
• Single shell housing design provides a compact unit while ensuring cool and quiet operation
• Hydraulic components molded from high quality engineered thermoplastics
• Optimized hydraulic design allows for increased performance and decreased power usage
• All metal components are made of high grade stainless steel for corrosion resistance
• Available with a high quality 115 V or 230 V, ½ hp motor
• Fluid flows of 10, 20, and 30 gpm, with a max shut-off pressure of over 100 psi
• Heavy duty 600 V - 10 foot SJOOW jacketed lead
