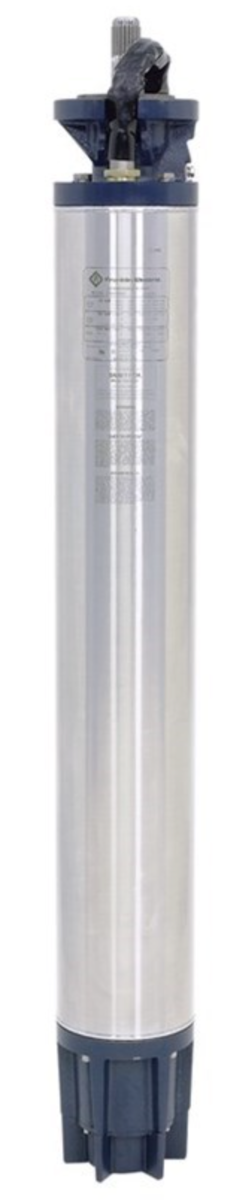

Franklin Electric 2396028521 - 8 Inch Submersible Motor - 60 HP - 460/380 Volt - 3-Phase

Franklin Electric 2396028521 - 60 HP Motor - Engineered and built for superior dependability in 8” diameter water well application.
• Horsepower: 60 hp
• NEW MOTOR REPLACEMENT
• 3-Wire (Will need a control box to operate)
• VOLTAGE: 3ø, 460/380V
• 60/50 Hz
• Three Phase
• 3525 RPM
• Continuous Duty Rated
• Kilowatts Rating: 3.7 KW
• Service Factor: 1.15

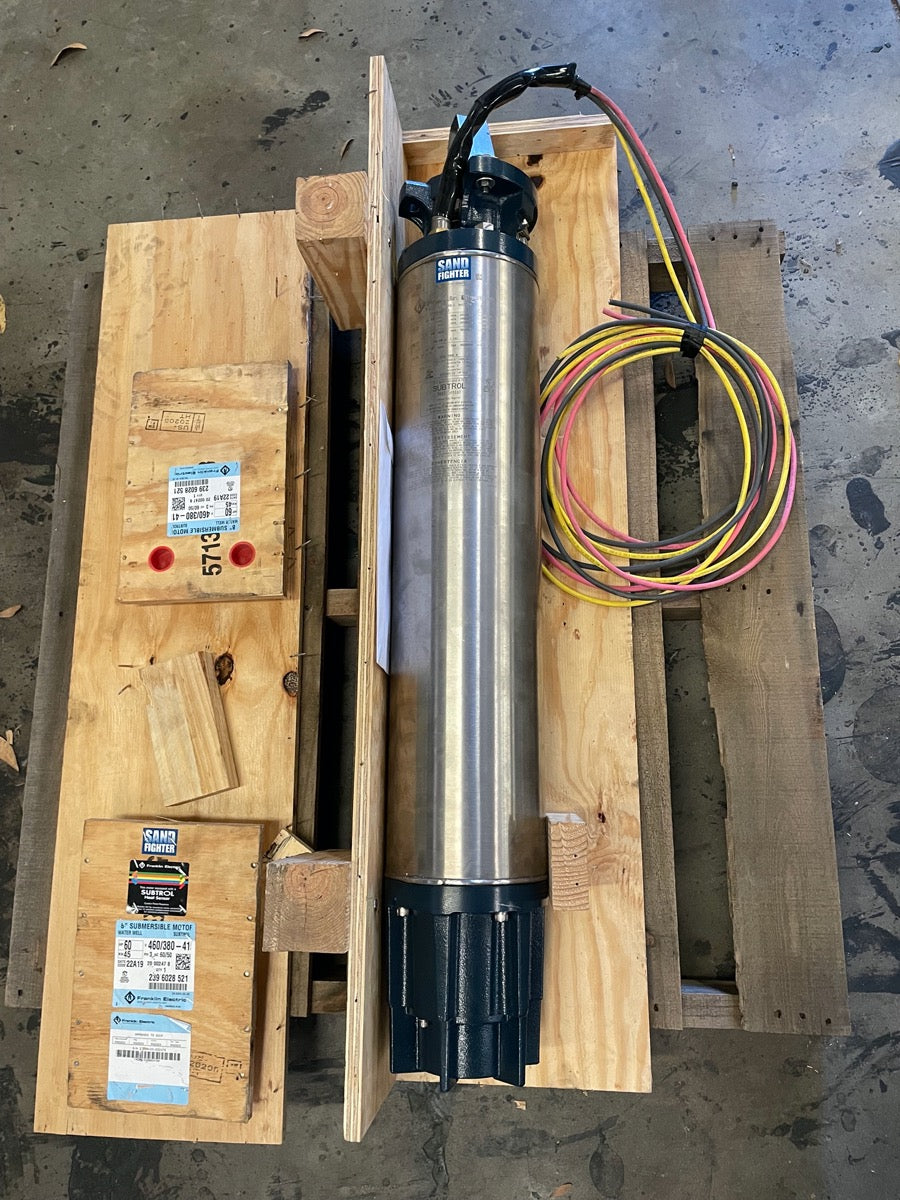

• Lead Wire (or Cable) Included PLEASE NOTE: This item is for a motor - only - not a complete submersible pump

Franklin Electric Motor - 60 HP - 2396028521
These motors are built for superior dependability in 8” diameter water well application.

Components & Materials of Contruction
• ƒ Double flanged NEMA mounting design
• ƒ ƒStainless steel splined shaft
• ƒƒ StatorShieldTM six feature encapsulation system
ƒ• ƒ High-capacity, Kingsbury-type, water lubricated thrust bearing
ƒ• ƒ Factory filled with Franklin’s non-toxic water soluble fill solution
ƒ• ƒ Field replaceable lead using Franklin’s exclusive Water-BlocTM technology
ƒ• ƒ Full 3,525 rpm 60 Hz design point
ƒ• ƒ External sand slinger on shaft
ƒ• ƒ Mechanical face seal at shaft exit
ƒ• ƒ Copper bar rotor
ƒ• ƒ All models are variable frequency drive (VFD) compatible

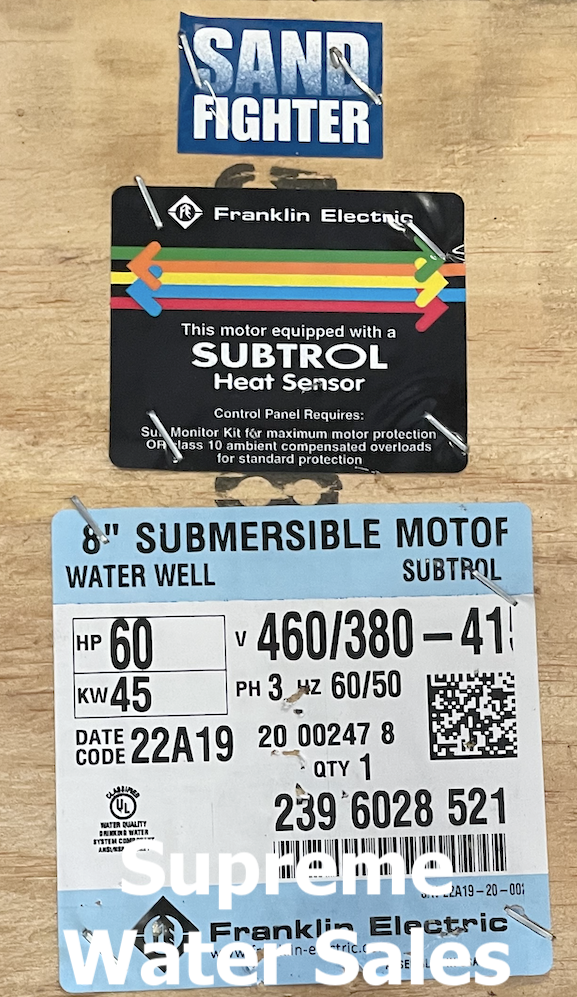

ƒ• ƒ Franklin’s Exclusive on-winding SubTrolTM heat sensor for use with SubMonitor ConnectTM

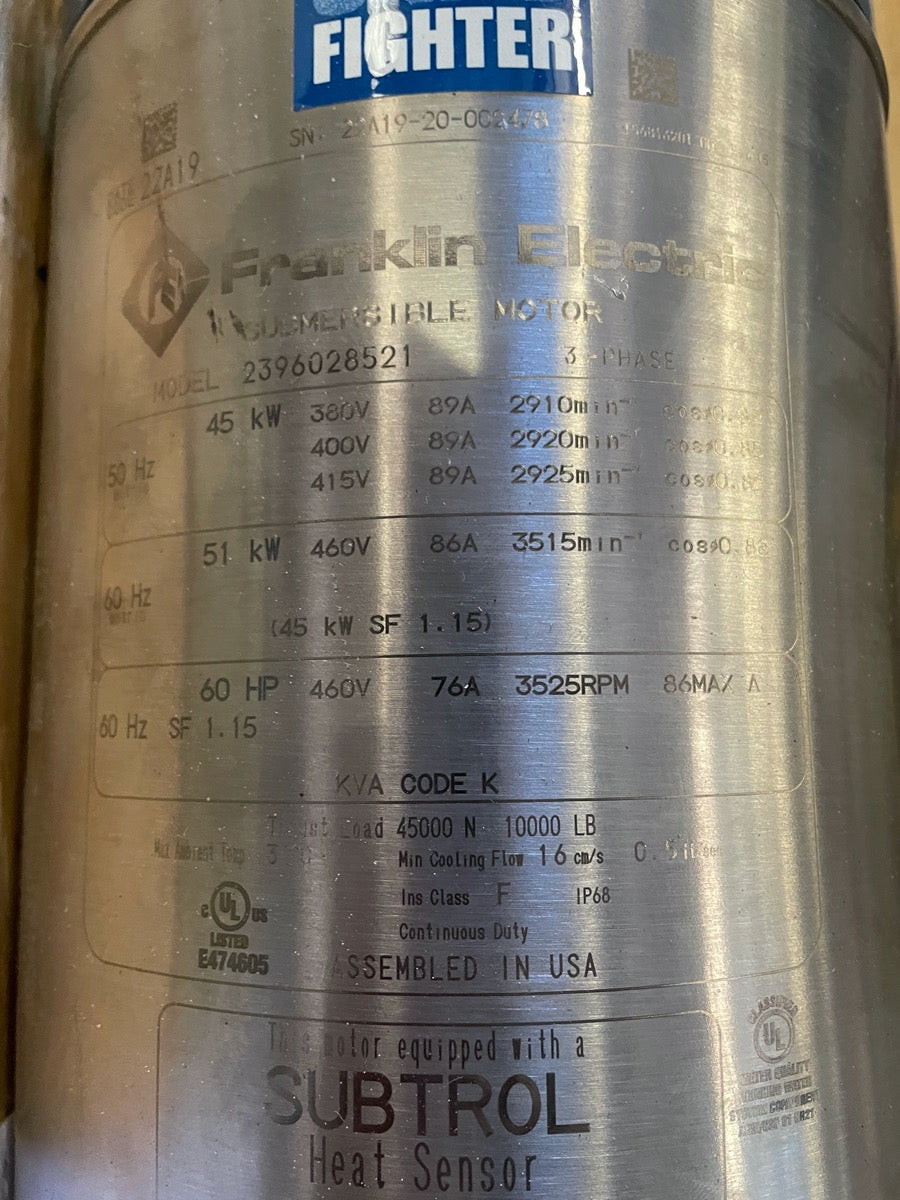

Motor Features:
ĥ BODY CONSTRUCTION: 316 Stainless Steel
ĥ HORSEPOWER: 60 HP
ƒ• VOLTAGE: 3ø, 460/380V
ĥ RPM: 3525/2900
ĥ SERVICE FACTOR: 1.15/1.0
ĥ DOWNWARD THRUST (lbs): 10,000 lbs
ƒ• MAX AMBIENT TEMPERATURE: 86°F/30°C
ĥ DUTY RATING: Continuous
ĥ FULL LOAD AMPS: 76
ƒ• LƒEAD: 3-Wire, XPLE

SPECIAL FEATURES
