Pearl
Pearl Thor15 Centrifugal Irrigation Pump - 1.5 HP - 115 / 230V
Pearl Thor15 Centrifugal Irrigation Pump - 1.5 HP - 115 / 230V
SKU:THOR-15F16S
Price shown is your price. Shipping calculated at checkout; call (866) 202-8388 for a freight quote.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Pearl THOR15 is a 1.5 HP self-priming centrifugal pump for irrigation, water recirculation, pressure boosting and water supply, suitable for indoor and outdoor installs.
Not sure it fits? Call (866) 202-8388 and we will confirm the right part.
Specifications
| Brand | Pearl |
|---|---|
| Model | THOR15 (THOR-15F16S) |
| Horsepower | 1.5 HP |
| Voltage | 115 / 230 V |
| Suction / discharge | 1-1/2" FNPT / 1-1/2" FNPT |

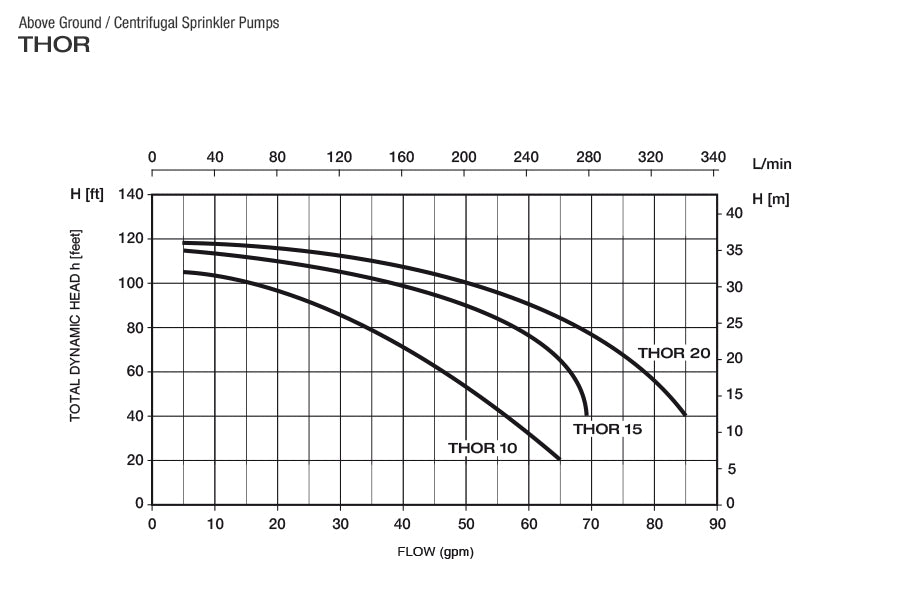

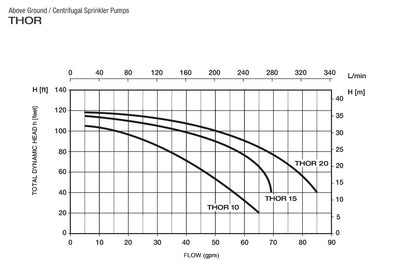

| Best range | 40-60 GPM at 80-100 ft TDH (35-40 psi) |
| Max suction lift | 25 ft |
| Liquid temperature | 32-150°F |
| Max working pressure | 125 psi |
| Motor | NEMA 56J ODP, continuous duty |
Fits / Replaces
- Lawn and sprinkler irrigation, recirculation, boosting
- Replaces a similar 1.5 HP self-priming irrigation pump
- More options: irrigation pumps
Install & Use Notes
Fill the pump through the priming port before the first start, and never run it dry. Use the drain port to winterize.
Frequently Asked Questions
Is the THOR15 self-priming?
Yes.
How high can it lift?
Up to 25 ft of suction lift.
What voltage?
115 / 230 V.
Can it go outside?
Yes, it is suitable for outdoor installation.
Full Product Details
• Series: THOR
• Product Type: Centrifugal Irrigation Pump
• Horsepower: 1.50 HP
• Dual Voltage: 115 / 230 V
• Pipe Connections: 1-1/2" FNPT (Inlet) / 1-1/2" FNPT (Outlet)
• Optimum TDH Range: 80 to 100 TDH
• Optimum PSI Range: 35 to 40 psi
• Optimum Flow Rate: 40 to 60 GPM
Pearl THOR15 - Centrifugal Irrigation Pump
THOR is a self priming centrifugal pump. The THOR pump was designed taking into consideration all the features needed to guarantee complete customer satisfaction, such as:
All components were designed to assure the best performance and reliability
• THOR’s construction is it suitable for outdoor applications.
• THOR is used in irrigation systems where high flow is important at pressures necessary for efficient irrigation.
• THOR also has applications in Air Conditioning, Water Re-circulation, Residential, Water Supply, Pressure Booster and many other applications.
• Its construction makes THOR suitable for indoor and outdoor installations.
Pearl Thor Typical Applications
• Lifting water containing air or other gases
• Water re-circulation
• Irrigation systems
OPERATING CONDITIONS
• Liquid temperature: 32 °F - 150 °F
• Maximum working pressure: 125 PSI
• Continuous duty
• Max Suction Lift Capability up to 25 ft.
CONSTRUCTION
• Closed coupled self-priming centrifugal pump
• High quality components for domestic water supply and irrigation in respect to low lead requirements
• Connections threaded ports NPT
• All hardware in Stainless Steel
• Pre-drilled priming port with plug
• Pre-drilled drain port with plug for maintenance
• U shape base on all models gives a complete full support to the pump
MOTOR
• NEMA Standard ODP 56J - wide body - motors for much cooler surface temperature
• Thermal overload protection
• Permanent Split Capacitor (PSC) without centrifugal switch for the 1 - 1½ - 2 Hp versions
• Front bearing 6204 for much longer life span
• All copper winding
• Class F Dupont Nomex Insulation System, cCSAus approved
• Single phase, 115/230V for 1 - 1½ Hp models
• Single phase, 230 V for 2 Hp models
• Easy voltage conversion for 1 - 1½ Hp models
• Maximum ambient temperature: 104 °F
PEARL THOR IS AN OPTIONAL REPLACEMENT PUMP FOR:
GOULDS GT15
STARITE DS3HF-01
FRANKLIN ELECTRIC TURF BOSS FTB15CI
RED LION RL-SPRK150
FLINT AND WALLING SP15P1
