Century Electric Motors

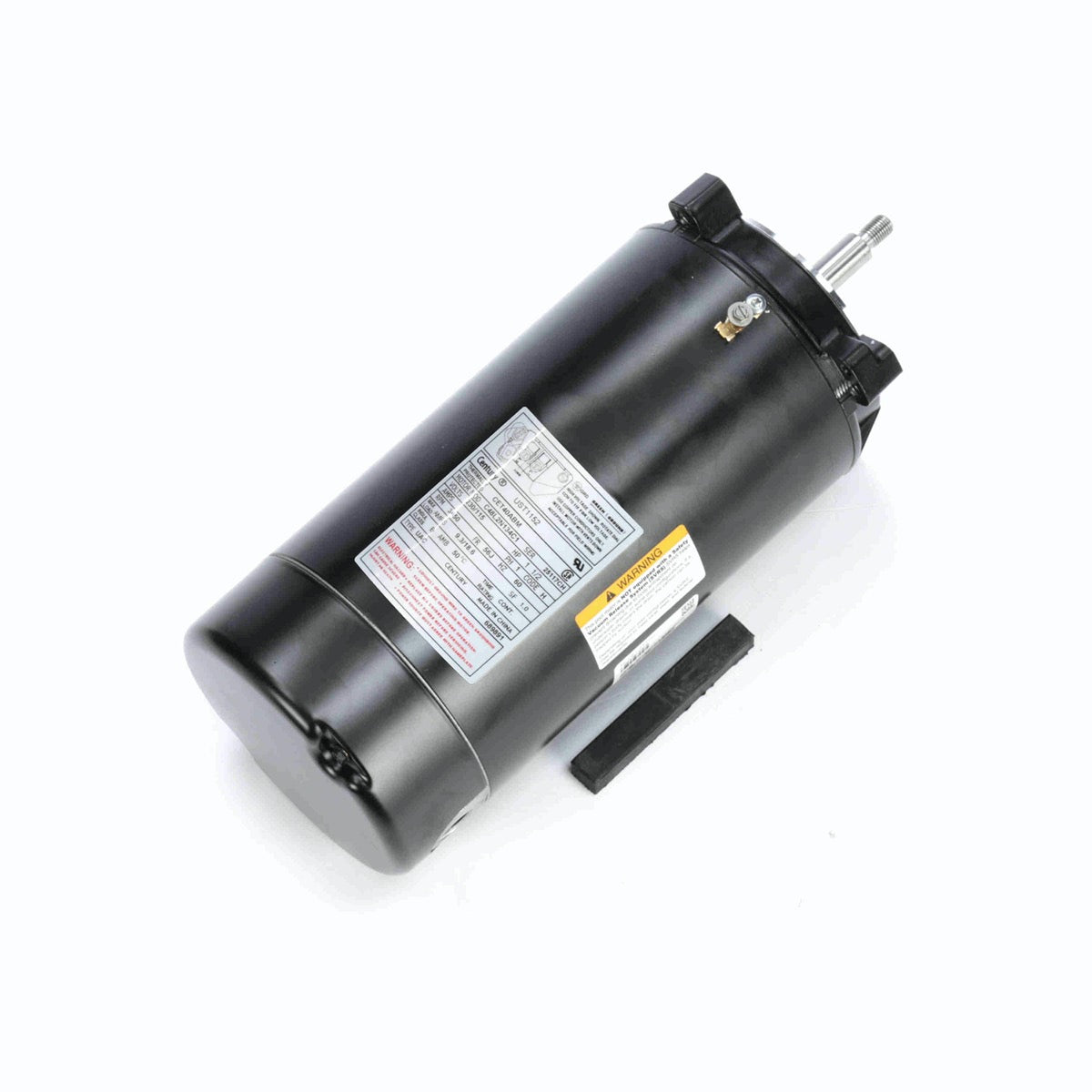

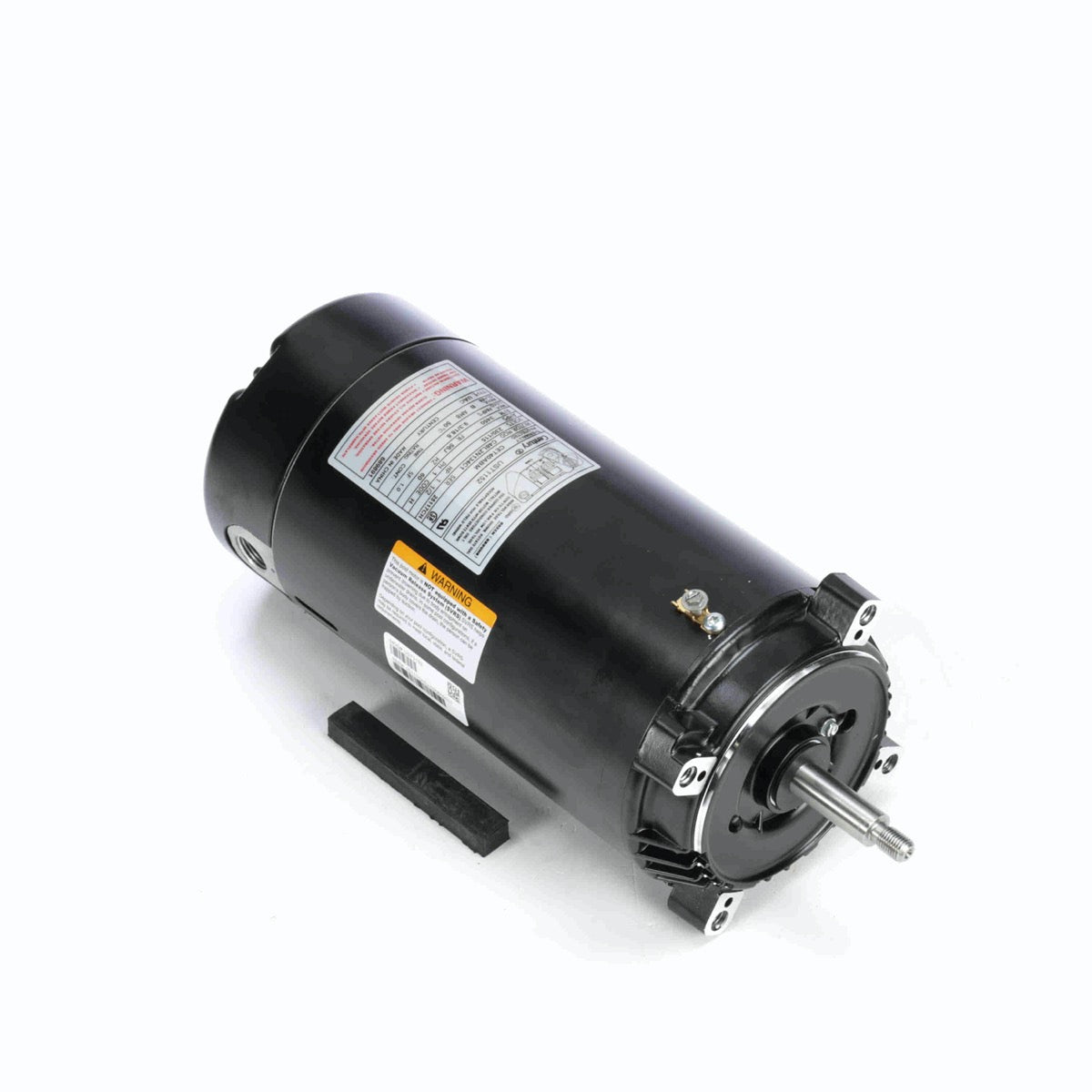

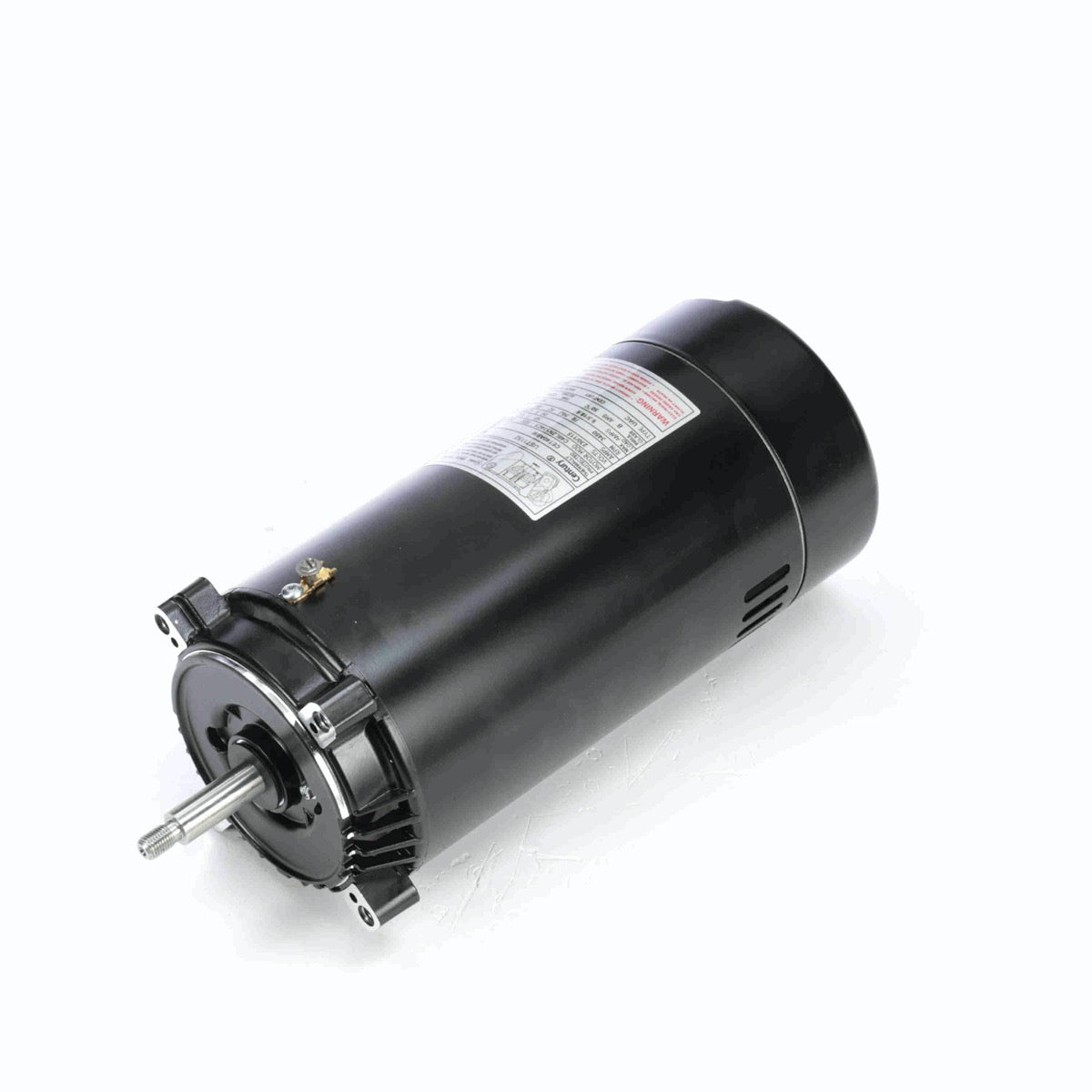

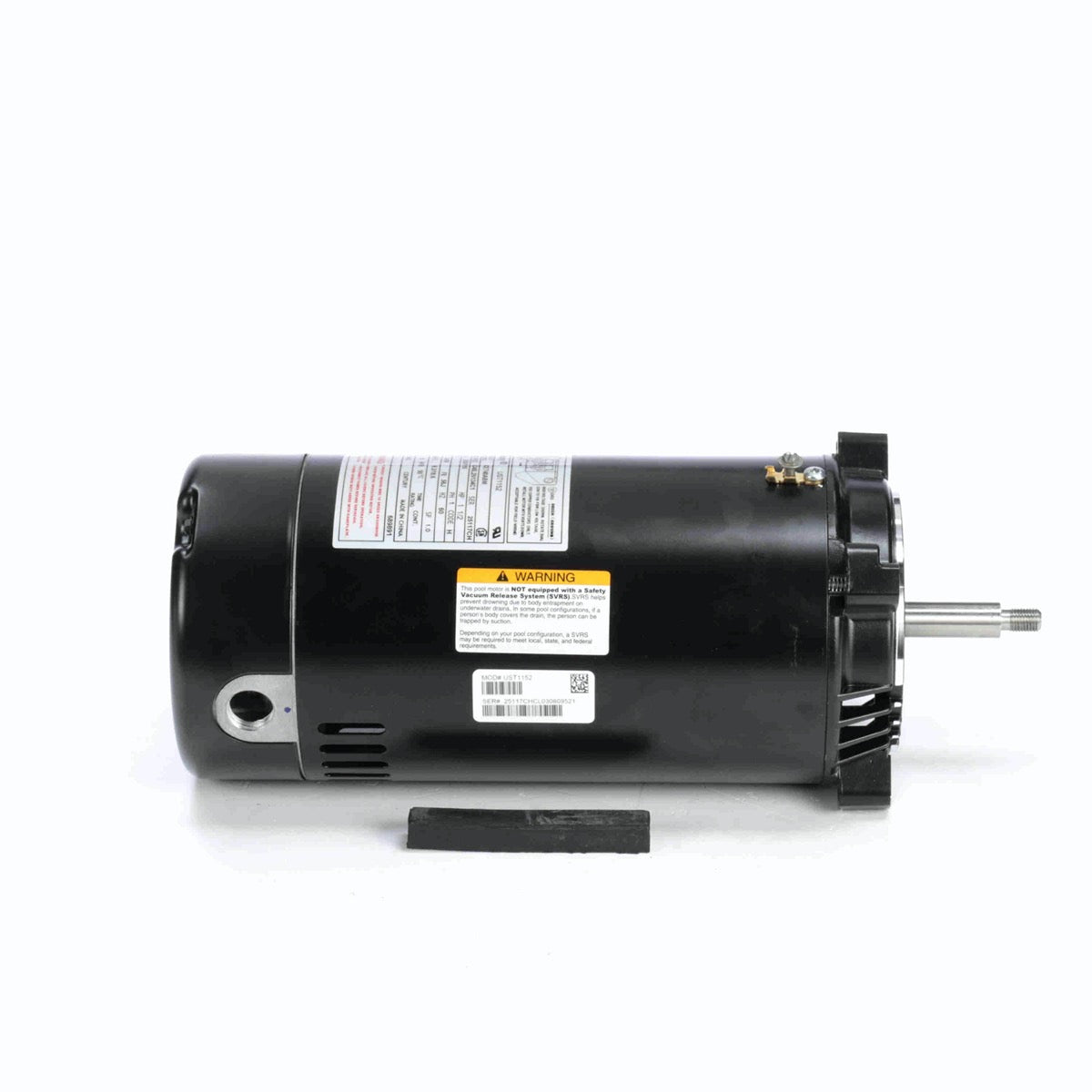

Century Electric UST1152 (equivalent to HST150) - Pool Pump Motor - 56J Frame - C Face ( Round ) - 1.50 HP - 115/230V
Century Electric UST1152 (equivalent to HST150) - Pool Pump Motor - 56J Frame - C Face ( Round ) - 1.50 HP - 115/230V
SKU:UST1152/HST150-01
Regular price
$352.95 USD
Regular price
$0.00 USD
Sale price
$352.95 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Century UST1152 is a 1.5 HP, 115/230 V pool and spa pump motor with a c-flange (round) and 56J frame. It is the equivalent replacement for the HST150 and many other brands' motors of the same size.
Not sure it fits? Call (866) 202-8388 and we will confirm the right part.
Specifications
| Brand | Century Electric (Regal Beloit; formerly AO Smith) |
|---|---|
| Model | UST1152 (equivalent to HST150) |
| Horsepower | 1.5 HP, 1.0 service factor (1.5 THP) |
| Voltage | 115 / 230 V, 60 Hz |
| Amps | 17.2 / 8.6 A |
| Output | 1.10 kW |
| Speed | 3450 RPM |
| Flange / frame | C-flange (round) / 56J |
| Bearings | Sealed 203 bearings both ends, Triple Seal protection on pump end |
| Shaft | 303 stainless steel, threaded |
| Enclosure | Open drip proof, UL 1081 design, auto protector |
Fits / Replaces
- Replaces: AO Smith ST1102, Emerson EST1102, Hayward SPX1610Z1M, Marathon C1319, US Motors AST165, Century B229SE
- Pool and spa pumps that use a 1.5 HP 56J c-flange (round) motor
- You may also need a GO-KIT or mechanical seal; see the pump and seal guide below or pool pump seal kits
Install & Use Notes
Turn off the breaker before you remove the old motor. Match horsepower, service factor, flange and frame to your old motor's label. Set the voltage selector to your supply (115 V or 230 V) before powering up, and replace the shaft seal whenever you change the motor.
Frequently Asked Questions
What does the UST1152 replace?
It is the equivalent of the HST150, and also replaces Emerson EST1102 and Hayward SPX1610Z1M, among others listed above.
Is it 115 V or 230 V?
Both. It is dual voltage with an easy voltage change device.
Do I need a new seal?
Yes, we recommend replacing the pump shaft seal whenever you change the motor.
What is the flange and frame?
C-flange (round), 56J frame.
Full Product Details
• Brand: Century Electric ( Formally AO Smith )
• Model: UST1152 , equivalent to the HST150 motor , call for details
• Horsepower ( HP ): 1.50 HP
• Voltage ( V ): 115 / 230 V
• Amps ( A ): 17.2 / 8.6 A
• Output ( KW ): 1.10 kW
• Service Factor ( SF ): 1.0 SF
• Total Horse Power ( THP ): 1.50 THP
• Speed (RPM): 3450 rpm
• Motor Flange: C-Flange ( Round )
• Motor Frame: 56J
Not sure which GO-KIT or Mechanical Seal your pool pump requires?
Click Here to View Pump & Seal Guide ( Below )
Century Electric UST1152 Pool Pump Motor is the Pool Industry's Leading replacement motor for AO Smith ST1102, AO Smith HST150 , Emerson EST1102 , Emerson EUST1152 , US Motors ( Nidec ) AST165 , Hayward SPX1610Z1M , SN Tech C1101 , SN Tech C1319 , Bluffton B1319 , AO Smith B229SE , Marathon C1319 , Marathon 5KCR39SN2823X
Standard Features of Century Electric UST1152 Pool Pump Motors
• Durable and easy-to-install
• Triple Seal Protection on pump-end bearing protects the bearing from water, pests and debris, extending the life of the motor
• Fast and easy installation with the open and accessible terminal board and wiring compartment
• Long lasting ( When properly Installed and Protected from Mother Nature )
• Designed for optimal performance and efficiency
• Easy voltage change device
• Premium sealed 203 bearings at both ends
• 303 stainless steel threaded shaft
• Most durable and economical solution in the market today
• Definitive shaft access (7/16” wrench)
• Auto protector
• UL 1081 design
• 60 Hz
• 50 C ambient
• Open drip proof
Why choose the Century Centurion PRO Motors over any other pool pump motors? What are the benefits?
The Centurion Pro motors are highly durable and easy to install, no other replacement pump motor comes close to a superbly crafted Century Centurion® PRO pool and spa motor. PLUS The -- NEW -- Triple Seal protection feature is designed into the pump end of the motor to protect the bearings from water, pests and debris, extending the life of the motor.
• Triple Seal Protection was developed to combat premature motor failures associated with pump end bearing failures due to water ingress
• Triple Seal Protection is a robust design that protects the pump end bearing on both the outboard and inboard facing seal of the bearing using three distinct sealing systems
• While Triple Seal Protection is designed to protect the pump end bearing from general water ingress, dust and debris, it is not designed to protect against leaky pump seals, constant spray from irrigation systems, or other extraneous conditions
• Seal Protection is another line of defense from moisture intrusion into the pump end bearing system
Pool Pumps & Seals Guide for HST Motor
| POOL PUMP ( Models ) |
GO-KITs (Includes Mechanical Seal) |
MECHANICAL SEAL (ONLY) |
|
Hayward Max-Flo SP2800 / SP2800X Models: SP2810X15
|
GO-KIT1 (Chlorine Pools) GO-KIT1V (Salt Water Pools) |
PSR-201 ( Chlorine Pools ) PSR-201V ( Salt Water Pools ) |
|
Hayward Super II SP3000 / SP3000X Models: SP3010EEAZ, SP3010X15AZ, SP3010X152AZ, W3SP3010X15AZ
|
GO-KIT2 (Chlorine Pools) GO-KIT2V (Salt Water Pools) |
PSR-201 ( Chlorine Pools ) PSR-201V ( Salt Water Pools ) |
|
Hayward Super Pump SP2600 / SP2600X Models: SP2610X15, SP2670010X15, W3SP2610X15, SP2610X152S
|
GO-KIT3 (Chlorine Pools) GO-KIT3V (Salt Water Pools) |
PSR-201 ( Chlorine Pools ) PSR-201V ( Salt Water Pools ) |
